CATV system/ SP4F
Naval digital and analogue splitters SP2F and SP4F have been designed especially for marine use and the complete TV/Radio frequencies of
0.1–1000 MHz worldwide. In order to avoid interference due to connection between the splitter and the ship’s hull, the splitter base is manufactured in plastic to make it double isolated.
Product DescriptionFile DownloadProduct Specification

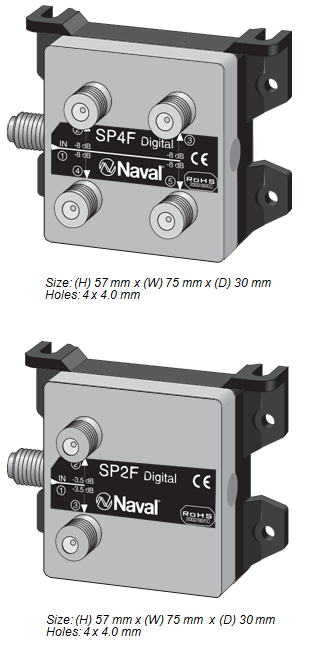

TECHNICAL SPECIFICATIONS
Splitter SP4F with F-connectors
Frequency range: 100 kHz–1000 MHz
Splitter loss: 8 dB
Splitter SP2F with F-connectors
Frequency range: 0.1–1000 MHz
Splitter loss: 3.5 dB
Electrical
Isolation, TV-TV: > 20 dB
Return loss: > 20 dB
Screening factor: 75 dB
Impedance: 75 Ohm
Operating temp: -40°C – +60°C
CE specifications according to EN50082-1, EN 5008-1,
DIN V VDE 0855 part 10
Return loss 20 dB from 40 MHz–1.5 dB/octave
Below 5 MHz the spec may vary

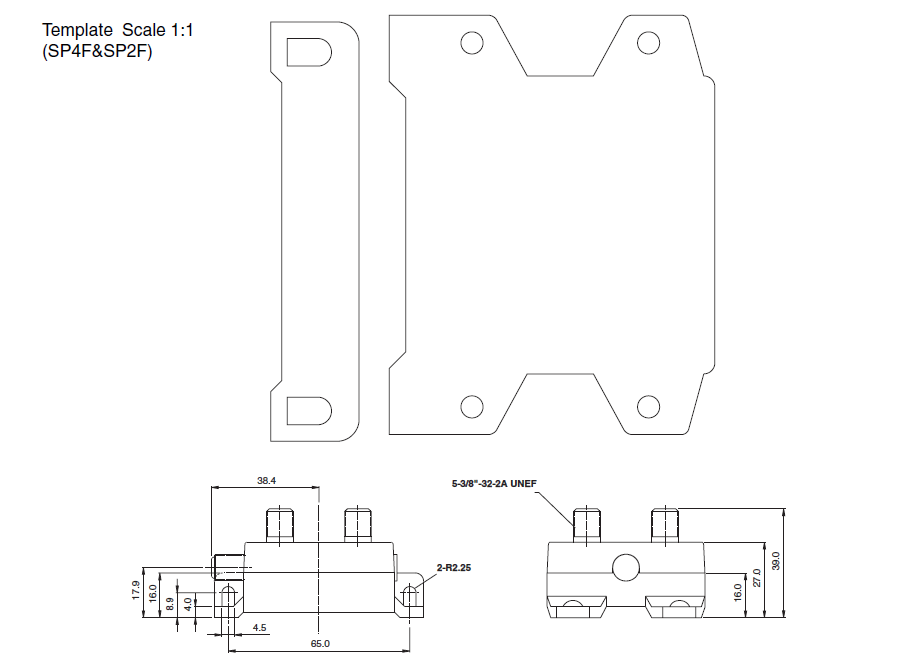

Mechanical
Weight: 150 g
Material of product housing: White bronze (CuSn)
Connector: Phosphor bronze Sn plated.
Isolator: ABS 94HB BLACK RAL9005
Mechanical specification of F-connector Standard: according
to IEC 169-24 12G(U.S.A)8 Range of adopted cable’s central
pin: ?0.4–?1,2 mm. Pull Force: Min. 0.5N
Application: ETS 3000019
Protection: IP50 (same as DIN40050)
Storaging temperature: -40…. +80°C
Label: Background: gray similar to RAL 7032 Text: black RAL 9005

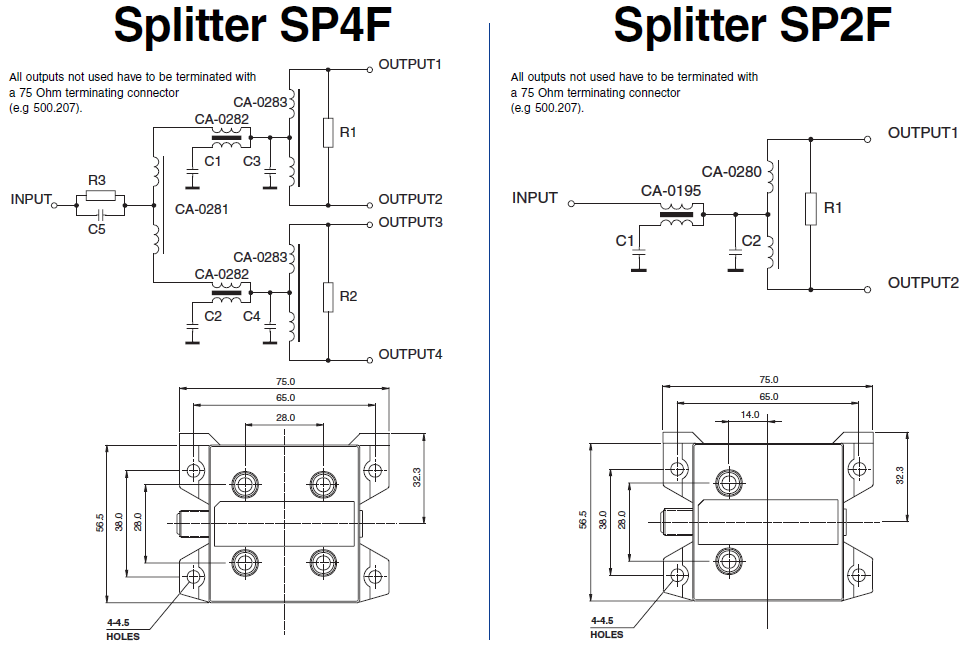

All outputs not used have to be terminated with a 75 Ohm terminating connector (e.g 500.207).
