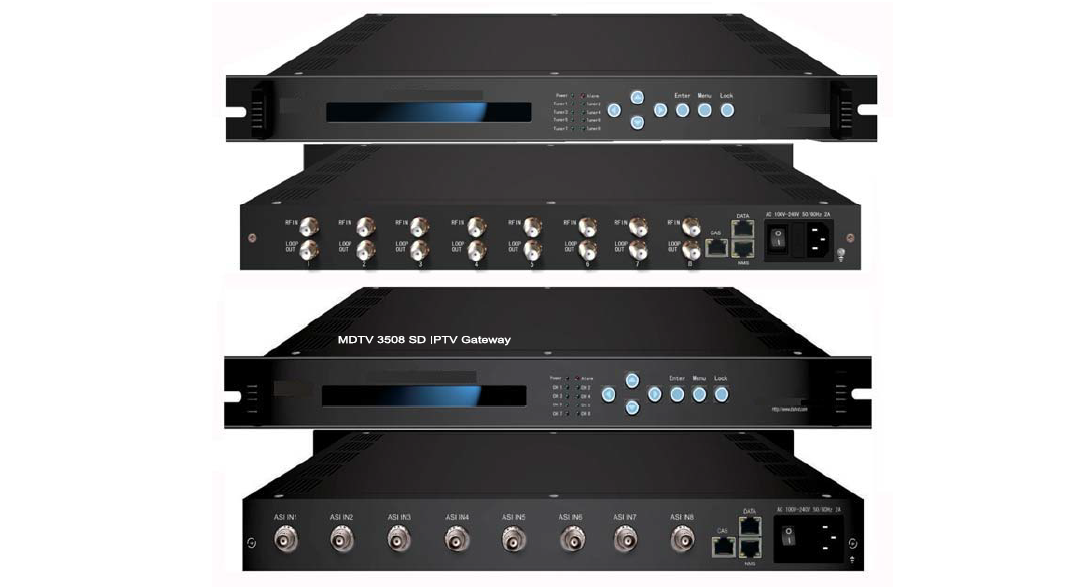

Digital Entertainment system/ MDTV 3508 SD IPTV Gateway
MDTV 3508 SD IPTV Gateway is a head-end interface conversion device which is used for DVB, ASI and Ethernet. It supports SPTSx32 output.
It is also integrated with demodulation and gateway function, which can demodulate the signal from 8 tuners (ASI) into TS. After multiplexing the TS, then packet the TS into IP package and output the IP package through different IP address and ports. It supports IP output (UDP protocol).
Product DescriptionFile DownloadProduct Specification
Feature
· Integrated with demodulation and gateway function
· Support 8 channels tuner (ASI) input and SPTSx32 output.
· Support MPEG-2 and MPEG-4 TS to IP one way conversion
· 1 GE output(support parallel 1 Gbps data output channel)
· Support maximum 8 tuner to IP converting channel, the maximum output bit-rate is 800Mbps
· Support IP output, UDP protocol, unicast and multicast
· Support LCD display and keyboard
· Support SNMP operation
Specification
| Input | tuner input(DVB‐S/DVB‐S2 /DVB‐T/DVB‐T2/DVB‐C/ISDB‐T optional) DVB‐C: 47 MHz~860 MHz, 16/32/64/128/256 QAM DVB‐S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds DVB‐S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds DVB‐T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB‐T2: 44MHz ~999 MHz, 6/7/8 M bandwidth ISDB‐T: 153 MHz ~862 MHz, 6/7/8M bandwidth | |
| 8 ASI input | ||
| Output | 1 GE output, UDP protocol, unicast and Multicast | |
| Transmission Bit‐rate | Maximum total bit‐rate is 800Mbps | |
| General | Dimension(WxLxH) | 482mm×410mm×44mm |
| Weight | 3.6kg | |
| Temperature | 0-45℃（working）， -20-80℃（storage） | |
| Power supply | 100-240VAC, 50/60Hz | |
| consumption | 20W | |
